Mini Connect Acoustic Room Divider

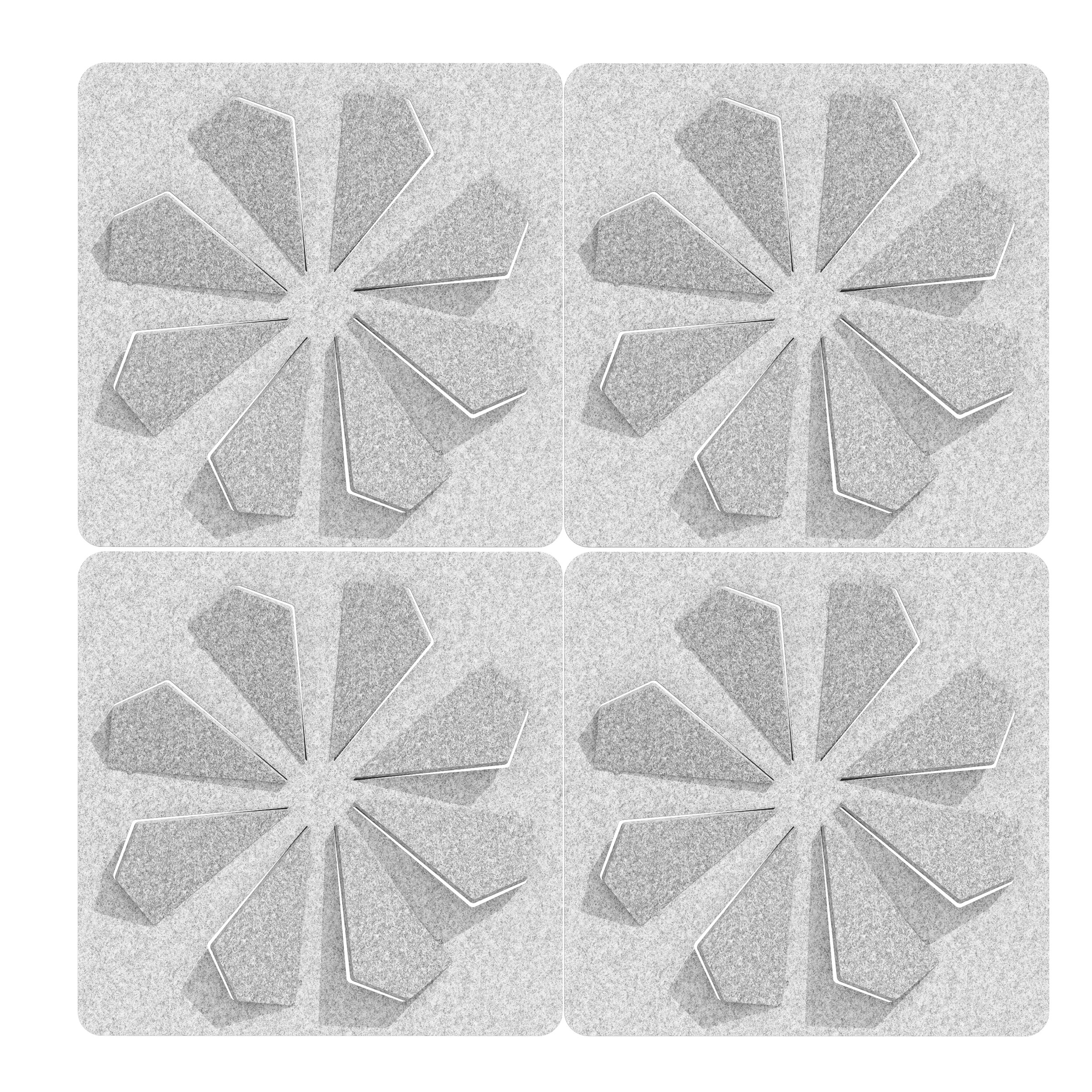

WINDMILL MINI is an extremely versatile and hygienic acoustic panel that can be hung or mounted onto the wall. Variety is the spice of life – so add as many panels relevant to the size of the space and mix up the colours to a chosen design.

The MINI range is designed to zone, aid social distancing, and reduce unwanted local noise in commercial and residential settings.

Also available for walls. Click here to find out more.

Suitable as wall mounted in ceiling-suspended options.

Min order 1 set (9 panels = 1 set) with 1 colour per set.

Available in 18 colours.

Size:
H397 x W397 x D12mm
Custom sizes on request

Properties:
› Antiviral/antimicrobial finish option
› Fully recyclable
› Composition 100% PET
› 65% post-consumer bottle flake
› Weight Msq: 12mm 2.4kg 24mm 4.8kg
› Semi-rigid, non-toxic, non-allergenic, non-irritating
› Stable and easy to clean
› Acoustic performance Class A / E
› Fire retardant: EN13501 B-s1,d0
› VOC emissions: <0.02mg / Msq (very low)
› Formaldehyde 0.00UG/g (none)
› Okeo tex: Standard 100 - Class 1 (free from harmful chemicals)
› Easy to fit
› Each panel weighs 0.4kg, including fixings

Fitting:
› Wall: Adhesive
› Suspension: 1m+ Wires , Cap or twist fixings

Fire Retardant:
› B-S1, d0

Absorption Coefficients
› no air gap Aw 0.35 and NRC 0.50
› 20mm air gap Aw 0.45 and NRC 0.65
› 200mm air gap Aw 0.9 and NRC 0.85
› Class E / Class A

Designed by Acou.Space ©
